Spray booths

Spray booths for the furniture industry are most often separate spray booth and bake booth. In the furniture industry the size of the spray booth depends on the number of painters working simultaneously inside the booth as well as on size of painted obiect, spraying technology and housing conditions. From above considerations the spray booths intended for the furniture industry have different dimensions and we did not make two booths with the same dimensions yet.

The ASTHERM spray booths are designed with their greatest versatility in mind, therefore we assumed 3000 mm as the standard inside height of the booth , measured from floor gratings level to a ceiling filter . Thanks to that assumption, it is possible to spray such spatial elements like chests of drawers, wardrobes, counters, and the like.

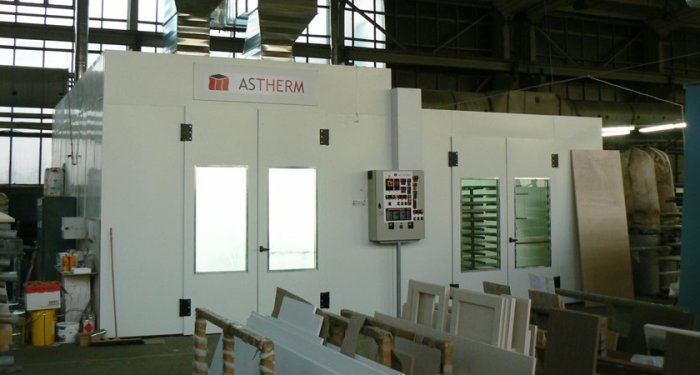

ASTHERM - manufacturer and supplier of spray booths, spray-bake booths and preparation stations - Spray booth for the furniture industry

The air flow in the booths for the furniture industry varies depending on needs. The warm air passes through the filter ceiling all the time, so the worker always breathes the clean air. The filter ceiling can be placed directly above the spraying area or a little bit off its centre.

In the booth with the vertical air downdraft the dusted air is extracted through the floor grates. In the booth with the crossdraft – the air passes through filters located on the side / gable wall, and in the booth with the combined, vertical-cross draft simultaneously through floor grids and filters in the side/gable wall. Each solution has its advantages and disadvantages, and the solution choice is selected together with the Inwestor, after determining the type and amount of spraying needed and resulting individual solution advantage analysis.

Lighting arrangement and brightness are usualy a crucial factor in the paint shop. Depending on the scope of production we propose different options: vertical lamps, horizontal lamps, placed also in two and more rows, horizontal lamps + lamps in the ceiling, shining down toward the floor. As in case of the ventilation system, we also agree this with the Customer and propose the best solution, dependent on the production specificity.

Ventilation-heating systems are designed either acording to safety standards or are designed on the basis of individual requirements. Systems of air heating available: oil, gas heaters, hot-water heat exchangers. Additionally, we can supply recuperation units based on unattended cross–flow exchangers with nominal efficiency up to the 75%.
