Preparation stations

They are complementary to a spray booths. The station consists of a grated floor area with exhaust ventilation system. A filter ceiling with the lighting is hung over the grid floor , supplying clean air and providing proper illumination of the working place.

The stations are used to conduct grinding works prior to the spraying, but also to conduct the polishing works before spraying the next paint layer. Conducting these works on the grated floor through which the air is sucked out all the time reduces radically dusting of the sprayed surface and the spread of overspray around the hall.

To keep the neighbouring workstations clean we offer the installation of drawn aside curtains. Their number and the size are matched to the needs of the specific place.

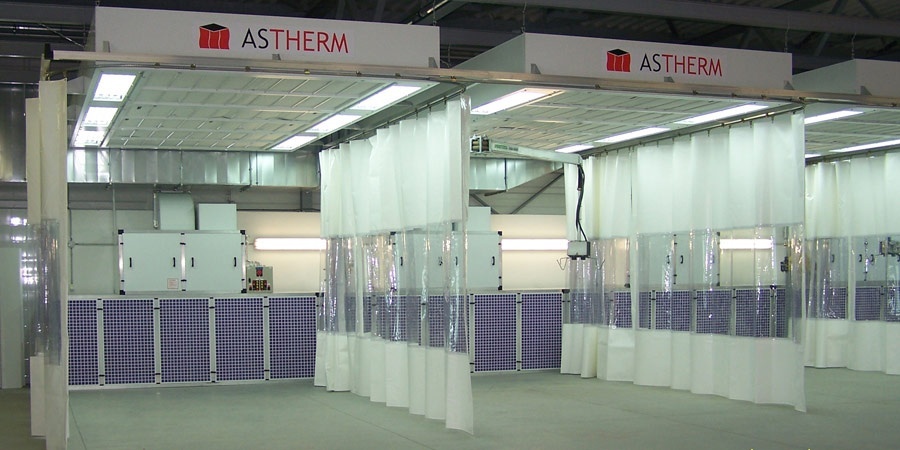

ASTHERM - manufacturer and supplier of spray booths, spray-bake booths and preparation stations - Preparation station for the furniture industry

The ventilation system of the preparation station offers two operation modes: SUMMER mode - where 80% of the air volume is taken out of the station and 20% is blown through the filter ceiling into the workzone and WINTER mode - where 80% of the air volume circulates in the closed cycle and 20% is expelled beyond the station. Such operation allows for the effective ventilation in the summer and prevents excesive cooling of the hall in the winter.

In installations, where the work in the preparation station is intensive or where many stations are installed, we offer a heating unit installation as an option, compensating for losses of heat by heating the supplied air to the work temperature 20 C of the paint shop.
